THS/MN21 Ferrous-in-Foil

Inquire

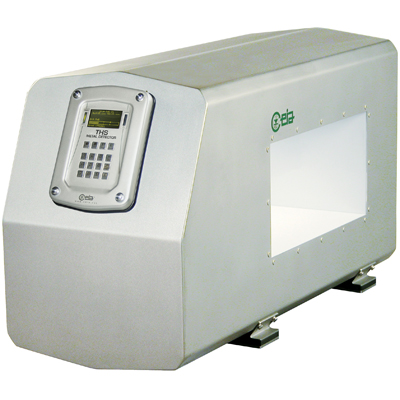

THS/MN21 metal detector


Ferrous-in-foil Metal Detector for quality control

  • Very high Sensitivity to ferrous and to all magnetic metals
  • Best ferrous in foil performances
  • Full compliance with HACCP criteria
  • 250 product data memories, selectable by local programming, bar code reader or network software
  • Completely housed in AISI 316L stainless steel
  • High level of electronic and mechanical reliability
  • Programmable via local keyboard and display or through external network

Options & Accesories


Bar-Code Reader

Reading the Bar-Code printed on the package, the metal detector select on-the-fly the appropriate detection parameters and the ejection timing, allowing multiple products lines to be inspected without manual change of the parameters.

Eithernet InterfaceEthernet module required for the network connection of several metal detectors or for the connection of one or more metal detectors over long distances.

WiFi InterfaceWi-Fi module required for the network connection of several metal detectors or for the connection of one or more metal detectors over long distances.

Conveyor Control SystemThe power-supply and control unit is housed in a watertight box in stainless steel which is designed to be attached by means of four screws and through which pass the connecting cables. The module contains the electronics needed for supplying power to the probe and the connection terminals for external sensors and slave devices. The card inside (card ALM), allows connections to be made to the following: metal detector probe, mains power supply, product transit photocell, external activators and sensors, personal computer. In addition to the functions provided by the Control Power Box, it includes a module to drive the conveyor belt motor, Card MDL, for variable-speed applications. The unit also incorporates the main switch, the controls for activating the belt and the LED indicators needed for operation (STC card).

Remote Control UnitMetal Detector Power Supply Unit, I/O Interface and Metal Detector Remote Control Unit (Belt Motor Control not installable).

MD ScopeMDSCOPE is a software package specifically developed by CEIA in order to allow easy and complete testing of the functioning of a Metal Detector – without the use of special instrumentation – both during the setting up phase and on the occasion of periodic tests. Using a personal computer, MDSCOPE allows adjustment and monitoring of the Metal Detector, as well as the storage and printing of the data gathered.

Software InterfaceTHS Production plus software for statistical and operational management of networked THS systems.
