- Reliably detects metals in packaged and unpackaged products on conveyor belts
- High sensitivity in dry, moist, salty or frozen goods with 3D detection
- Easy setup and intuitive operation due to auto-calibration and TeachAssistant
- Maintenance-free design with automatic and continuous calibration of detector coils
- BRC-Kit option: Conformity with the Global Standard of the British Retail Consortium (BRC) for food safety
- Special models: UltraSens for even better sensitivity or Twinhead model to overcome orientation effects
- Maximum detection performance with high accuracy in the detection area due to 4-quadrant technology
- Stable against temperature or product changes through 3D detection.
- Storage spaces for up to 250 products
- Easy to use with intuitive and multilingual menus
- Documentation of all events and metal messages
- Optional: Data transfer to USB interface or connection to the company network via SHARKNET® software
- Cyclical function monitoring with Performance Validation System (PVS)
- Available as a system solution with additional devices

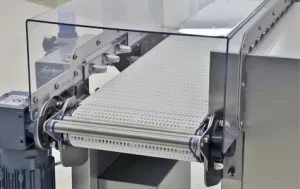

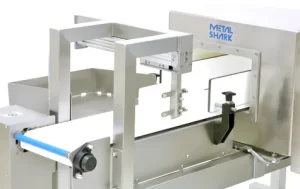

The METAL SHARK® BD is used free-standing or combined with conveyor belts or chutes. Using 3D detection technology, it detects the smallest magnetic and non-magnetic metal contaminants (iron, stainless steel, aluminum etc.) precisely and reliably even under difficult conditions. The robust, closed stainless steel housing is easy to clean and therefore ideally suited to the food industry.
- Sensorhead BD
- Controller METAL SHARK®
- Optional: system solutions with standardized or individual conveyor belt
- Optional: individual rejection solutions possible
- Monitoring of packed or loose goods free or on conveyor belts or chutes.
- Quality assurance for incoming goods, outgoing goods or during running production
Model Name/ID | METAL SHARK® BD |
Electronics | digital signal processor, noise filter, digital balance control, digital frequency control, PowerDrive circuit |
Input | 8 freely configurable 24 V DC signals, e.g. for reject confirmation or conveyor belt control |
Output | 2 potential-free: “Error” and “Metal” 8 freely configurable 24 V DC signals, e.g. for optic/acoustic alarm or start conveyor belt |
Inspection Method | Inductive, multi channel operation, balanced receiver coils |
Metal Detection | Ferrous, non-ferrous (e.g. aluminium or copper) und stainless steel |
Product Compensation | 250 storage spaces, compensation performed automatically, with Teach-Assistant |
Protection Type | IP65, optional IP66 or IP67 |
Ambience | Standard: -10°C to +40°C, rel. humidity 30% up to 80% (non condensing) Optional: -40°C or +55°C |
Product Temperature | Standard: -30°C to +40°C Optional: -40°C to +60°C |
Power Supply | One phase 110-240 VAC, 50/60 Hz, typ. consumption 20 W (max. 60 W) |
Interface | RS232, LAN (optional, for SHARKNET®), USB (optional) |
Maintenance | Maintenance-free, self calibrating sensors |
Diagnostics | Integrated diagnostic software, automatic self-test |
Conformity | CE |
