- Reliably detects magnetic and non-magnetic metals in fabrics, webs and flat products
- Flat detector surface with rotatable mounting hardware to align with ascending or descending product path
- Easy-to-install under or between conveying lines
- Intuitive control and easy installation with autocalibration and TeachAssistant
- Low maintenance with automatic balance and calibration control
- Best detection sensitivities due to CASSEL’s proprietary signal analysis (4-quadrant technology)
- Memory for up to 250 products
- Easy-to-use with intuitive and multilingual menus
- 4-level password system, automatic log out upon timeout
- Documentation of all events and metal detection alerts
- IFS and HACCP reports available on display at the touch of a button
- Optional: Data transfer to USB interface or connection to the company network via SHARKNET® software
- Cyclical function monitoring with Performance Validation System (PVS)
The METAL SHARK® FL and FL compact metal detectors are typically used for the inspection of non-wovens, textiles/fabrics and films. Both detectors are particularly flat and available in widths of 1,000 – 4,000 mm (39″ to 157″). The FL compact features a rotatable mount so that it can be adapted to sloping webs. Due to the high sensitivity of the FL models, even tiny magnetic and non-magnetic metal particles (e.g. iron, aluminum and stainless steel) are detected across the entire width.

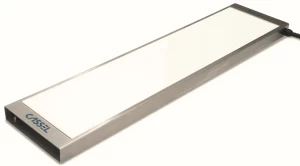

- FL or FL compact detection unit (sensor)
- METAL SHARK® control unit
- Monitoring of fabric, non-woven or synthetic webs, very shallow products moving on conveyor belts
- Quality assurance for incoming goods, outgoing goods or during ongoing production
- Machine or end user protection, e.g. against needle
