- Engineered for the monitoring of full-sized timber logs
- Low maintenance with automatic balance and calibration control
- Sturdy stainless steel design: extra rugged and with short metal-free zone
- Highest sensitivity with 4-quadrant technology
- Intuitive control and easy installation with automatic calibration and Teach Assistant
- 4-Quadrant technology provides maximum detection performance with the highest available reliability in the detection space
- Simple setup with TeachAssistant
- Memory for up to 250 products
- Easy to use with intuitive and multilingual menus
- Password protection with permission management
- Optional: data transfer to USB interface or connection to the company network via SHARKNET® software
- Cyclical function monitoring with Performance Validation System (PVS)
- Resilient to adverse environmental conditions such as high and low temperatures
- Documentation of all events and metal detection alerts

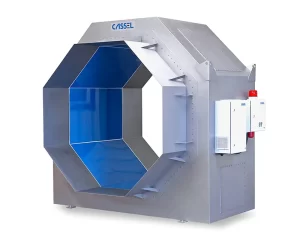

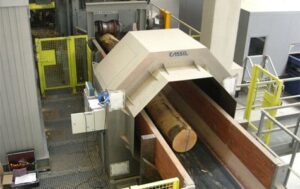

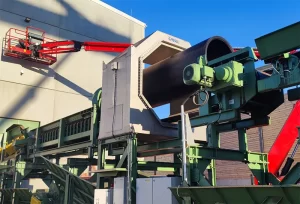

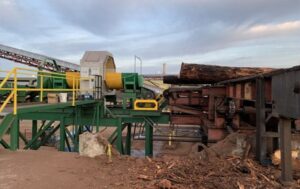

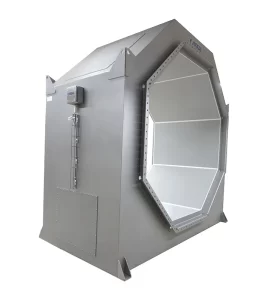

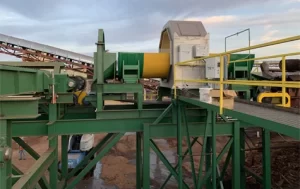

The METAL SHARK® OCTA was developed specifically for industrial use in forestry and sawmills. Its octagonal shape makes it ideal for monitoring logs for metal contamination caused by screws, nails or tools. It is typically installed with troughed belt conveyors. By means of the 4 quadrant technology it detects magnetic and non-magnetic metal contaminations (iron, stainless steel, aluminum etc.) accurately and reliably even in challenging conditions.
- OCTA detection unit
- METAL SHARK® control unit in stainless steel housing
- Protection of tools and machines from metal items such as nails or screws
- Monitoring of particularly large products, particularly timber logs
- Monitoring of bulky goods on troughed belt conveyors
Model Name/ID | METAL SHARK® OCTA |
Electronics | Digital signal processor, digital frequency generation, digital balance control, automatic calibration, digital noise filters, integrated flexible control functions |
Input | 2 analog 0 …10 V DC (option: 4-20 mA) 8 freely configurable 24 V DC signals, e.g. for rotary encoders, product recognition, buttons |
Output | 2 floating: “error” and “metal” 8 freely configurable 24 V DC signals |
Inspection Method | High-frequency magnetic field, multi-channel operation, balanced receiver coils |
Metal Detection | Ferrous, non-ferrous (e.g. tombac, brass, bronze, aluminium, lead, etc.) and stainless steel |
Product Compensation | 250 memory locations, TeachAssistant |
Protection Type | IP54 |
Ambience | Standard: -20°C to +40°C / -4°F to 104°F, rel. humidity 20% up to 90%, non-condensing >95% rel. humidity (condensing) with controller casing closed |
Product Temperature | Up to +70°C / +158°F |
Power Supply | Single phase 110-240 V AC +/- 5%, typical consumption 20 W (60 W max.) |
Interface | RS232, LAN (optional, for SHARKNET®), USB (optional |
Maintenance | Very low maintenance, self-calibrating sensors |
Diagnostics | Integrated diagnostic software, automatic self-test |
Conformity | CE |
