- Reliably detects metals in packaged and unpackaged products on conveyors
- Removable sides make it particularly easy to install, ideal for belts that cannot be split
- Highest sensitivity with 4-quadrant technology
- Automatic calibration and TeachAssistant for intuitive control and easy installation
- Very low maintenance due to automatic balance and calibration control
- 4-quadrant technology provides maximum detection performance with highest reliability in the detection space
- Simple setup with TeachAssistant
- Memory for up to 250 products
- Easy-to-use with intuitive and multilingual menus
- 4-level password system, automatic log out upon timeout
- Documentation of all events and metal detection alerts
- IFS and HACCP reports available on the display at the touch of a button
- Optional: data transfer to USB interface or connection to the company network via SHARKNET® software
- Cyclical function monitoring with Performance Validation System (PVS)

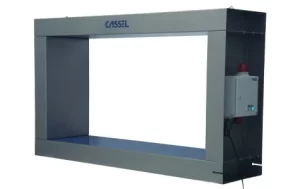

The METAL SHARK TU metal detector is used in combination with conveyors or chutes where these cannot be split or dismantled. The side walls of the TU can be removed so that sensors can be pushed over and under the belt without any need to split it up. Thanks to 4-quadrant technology, the METAL SHARK TU detects magnetic and non-magnetic metal contaminants (iron, stainless steel, aluminum etc.) accurately and reliably. The stainless steel housing is easy-to-clean and rugged, making it suitable for a wide variety of industries.

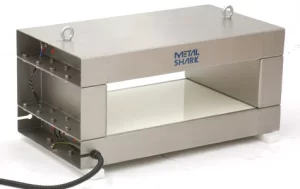

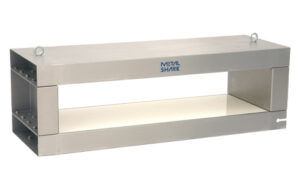

- Detection unit (sensor) TU with removable side panels
- Control unit METAL SHARK® (separate mounting, e.g. wall mounting)

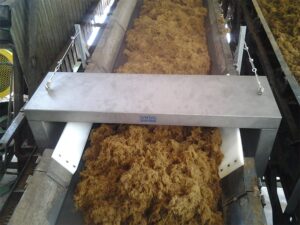

- Monitoring of packed or loose goods free or on conveyor belts or chutes
- Quality assurance for incoming goods, outgoing goods or during ongoing production

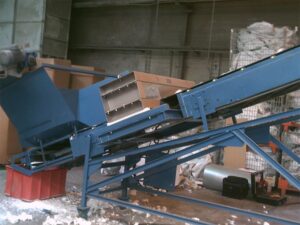

- Machine protection, e.g. in the recycling industry
Model Name/ID | METAL SHARK® TU |
Electronics | Digital signal processor, digital frequency generation, digital balance control, automatic calibration, digital noise filters, integrated flexible control functions |
Input | 2 analog 0 … 10 V DC (option: 4-20 mA) 8 freely configurable 24 V DC signals, e.g. for encoders, product recognition, buttons |
Output | 2 floating: “error” and “metal” 8 freely configurable 24 V DC signals, e.g. magnetic valve, visual/acoustic alarm |
Inspection Method | High-frequency magnetic field, multi-channel operation, balanced receiver coils |
Metal Detection | Ferrous, non-ferrous (e.g. aluminium or copper) and stainless steel |
Product Compensation | 250 memory locations, TeachAssistant |
Protection Type | Control unit: IP65 Sensor: IP54, optional IP66 |
Ambience | Controller: -20°C to +40°C / -4°F to 104°F, optional: -40°C / -40°F or +55°C / 131°F, rel. humidity 20% to 90% non-condensing Sensor: -30°C to +60°C / -22°F to +140°F, optional: +90°C / 194°F |
Product Temperature | Standard: -30°C to +55°C / -22°F to 131°F Optional: -40°C to +120°C / -40°F to 248°F |
Power Supply | Single-phase, 110-230 V AC +/- 5% 20 W typical (60 W max.) |
Interface | RS232, LAN (optional, for SHARKNET®), USB (optional) |
Maintenance | Very low maintenance, self-calibrating sensors |
Diagnostics | Integrated diagnostic software, automatic self-test |
Conformity | CE |
